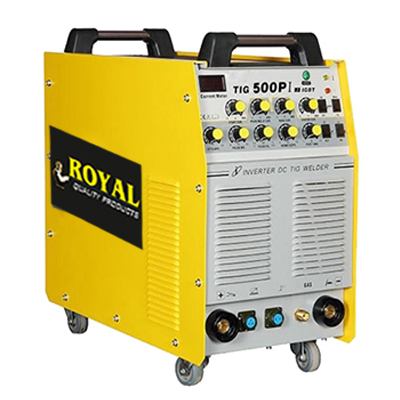

TIG Series TIG 500

Technical Parameters

Parameter TIG 500 AMPS - IGBT - PULSE
Power Voltage (V) MIG-500I-3P IGBT
Frequency (Hz) 50/60
Rated input Current (A) 24.7
Current adjust range (A) 80-400
Rated output Current (A) 39
Power Factor 0.93
Overall Dimension (inch) 25.5x12x25
Weight (KG) 42
Welding rod diameter 0.8 - 1.6
Welding plate thickness -

Product Description

Adapted poerful MOSFET to change the supply frequency of 50/60 HZ to high frequency (up to 100 KHZ), and then to come down the voltage as well as to.
  • Water Cool Tig Torch
  • Earth Clamp with Cable
  • ARC Holder with Cable


Guidlines based materials

Base Material Plate Thickness (mm) Welding rod/Carbon rod (dia) Current Range (A) Applicable Model
All Types of Carbon Steel, Stainless Steel, Low-alloy Steel

-

-

-

-

Product Features

  • Multi-Functional: Pulse TIG and MMA Function.

  • 2T/4T and Repeat function.

  • Up Slope and Down Slope function adjustable.

  • Superior performance.

  • Wide range of Input voltage: 380V + 15%.

  • With advanced Single IGBT technology.
