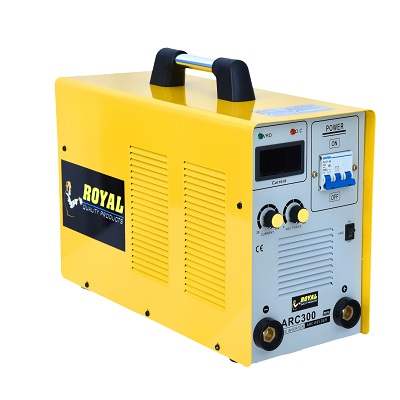

ARC Series ARC 300
| Parameter | MMA 300 AMPS MOSFET |
|---|---|
| Power Voltage (V) | AC415V±15% |
| Frequency (Hz) | 50/60 |
| Rated input power capacity (KVA) | 12.5 |
| Rated input Current (A) | 18.5 |
| No-load Voltage (V) | 66V |
| Current adjust range (A) | 20-300 |
| Rated output Current (A) | 28 |
| Duty Cycle (%)) | 60 |
| No-load Power (W) | 100W |
| Efficiency (%) | 80 |
| Power Factor | 0.73 |
| Insulation Class | F |
| Shell Protection Class | IP21 |
| Overall Dimension (mm) | 371x153x232 |
| Weight (KG) | 17.5 |
| Welding rod diameter | 1.6 - 3.2 |
| Welding plate thickness | 2.0-6.0 |
