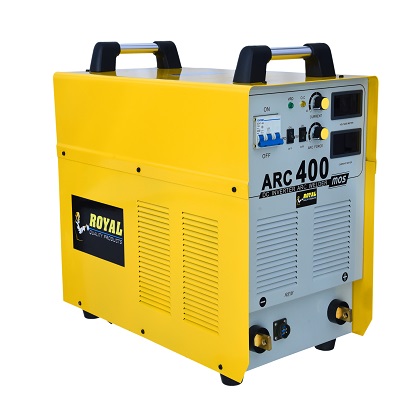

ARC Series ARC 400 Mosfet
| Parameter | ARC-400 Mosfet |
|---|---|
| Power Voltage (V) | 1P AC -230±15% |
| Frequency (Hz) | 50/60 |
| Rated input power capacity (KVA) | 5.0 |
| Rated input Current (A) | 42.5 |
| No-load Voltage (V) | 68V |
| Current adjust range (A) | 20-200 |
| Rated output Current (A) | 28 |
| Duty Cycle (%)) | 60 |
| No-load Power (W) | 100W |
| Efficiency (%) | 80 |
| Power Factor | 0.73 |
| Insulation Class | F |
| Shell Protection Class | IP21 |
| Overall Dimension (INCH) | 21.5x11x21.5 |
| Weight (KG) | 33 |
| Welding rod diameter | 1.6 - 3.2 |
| Welding plate thickness | 2.0-6.0 |
Product Description
Excellent,Professional,Reliable and Rugged.
Guidlines based materials
| Base Material | Plate Thickness (mm) | Welding rod/Carbon rod (dia) | Current Range (A) | Applicable Model |
|---|---|---|---|---|
| All Types of Carbon Steel, Stainless Steel, Low-alloy Steel |
- 3.0 -20.0 |
- 2.0 - 6.0 |
- 40 - 400 |
- ARC-300 |
Product Features
- Advanced inverter technology Advance arc force and arc-starting function and can resist interference Stable arc and little splash and low noise High welding quality, deep bath and strong strength Auto protection of over-voltage and over-current Suitable for welding all kinds of basic welding rods Capable to work continuously Automatic self balancing ability when voltage is wavering Beautiful shape and structural design.Advanced inverter technology Advance arc force and arc-starting function and can resist interference Stable arc and little splash and low noise High welding quality, deep bath and strong strength Auto protection of over-voltage and over-current Suitable for welding all kinds of basic welding rods Capable to work continuously Automatic self balancing ability when voltage is wavering Beautiful shape and structural design.
- High efficiency, high frequency, low electricity consumption Light and handy for easy portability User friendly and easy maintenance Excellent insulation properties. Perfect self-protective design, anti-static, good corrosion resistance. Suitable for upholster industry, high altitude, field operation Labour Savings 35 to 55% Power Savings 35 to 55%
