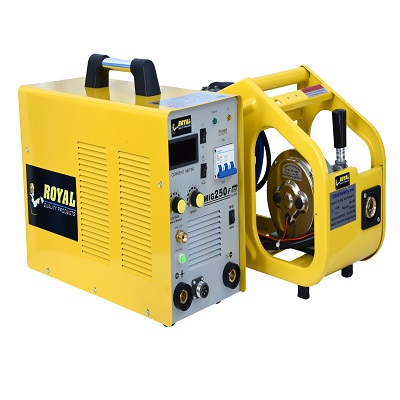

MIG Series MIG 250-3 Phase
| Parameter | MIG 250 AMPS 3 PHASE MOSFET |
|---|---|
| Input Voltage (V) | AC415V±15% |
| Frequency (Hz) | 50/60 |
| Rated input power capacity (A) MMA/TIG | 8.5 |
| Output input range (A) | 50-250 |
| Output Voltage Adjustment (V) | 26.5 |
| Wire feeding speed (m/min) | 2.5-18 |
| Duty Cycle (%)) | 60 |
| Type of wire feeder | split |
| Efficiency (%) | 85 |
| Power Factor | 0.73 |
| Insulation Class | F |
| Shell Protection Class | IP21 |
| Overall Dimension (inch) | 14.5x6x9 |
| Weight (KG) | 9 |
Product Description
Adopting IGBT invertor technology, Easy Arc-Starting, Reliable and stable performance. Closed circuit feedback, constant output of voltage, suitable for wide range of voltage (+-15%). Controlled by electronic reactor, little spark, deep welding pool, nice welding seam. Slow wire feeding during arc starting, remove the ball at the end of the welding wire.
- MIG Torch
- Earth Clamp with Cable
- Regulator
- Gas House with Clamp
- ARC Holder with Cable
Guidlines based materials
| Base Material | Plate Thickness (mm) | Welding rod/Carbon rod (dia) | Current Range (A) | Applicable Model |
|---|---|---|---|---|
| All Types of Carbon Steel, Stainless Steel, Low-alloy Steel | - |
- |
- |
- |
Product Features
- High efficiency and energy savings; its power usage efficiency is up to 80 — 85%, its power factor is up to 0.93; and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder.
- Continuous adjustment function of the welding current voltage with a sufficient wide adjustment range.
- Digital display, current & voltage preset function.
- Superior performance.
- Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding.
- With advanced Single IGBT technology.
