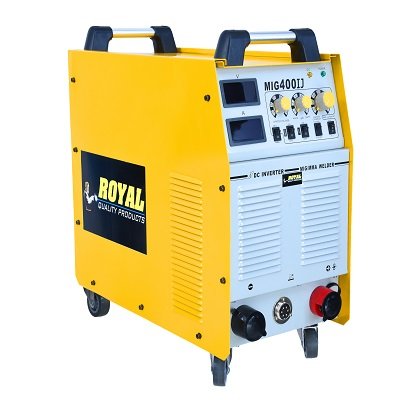

MIG Series MIG 400

Parameter MIG - MAG / ARC 400 AMPS I Modualar IGBT
Input Voltage (V) AC415V±15%
Frequency (Hz) 50/60
Rated input power capacity (A) MMA/TIG 14
Output input range (A) 50-400
Output Voltage Adjustment (V) 31.5
Wire feeding speed (m/min) 3.0-24
Duty Cycle (%)) 60
Type of wire feeder split
Efficiency (%) 85
Power Factor 0.93
Insulation Class F
Shell Protection Class IP21
Overall Dimension (inch) 21x5x11
Weight (KG) 36

Product Description

Adopting IGBT invertor technology, Easy Arc-Starting, Reliable and stable performance. Closed circuit feedback, constant output of voltage, suitable for wide range of voltage (+-15%). Controlled by electronic reactor, little spark, deep welding pool, nice welding seam. Slow wire feeding during arc starting, remove the ball at the end of the welding wire.

  • MIG Torch
  • Earth Clamp with Cable
  • Regulator
  • Gas House with Clamp
  • ARC Holder with Cable

Guidlines based materials

Base Material Plate Thickness (mm) Welding rod/Carbon rod (dia) Current Range (A) Applicable Model
All Types of Carbon Steel, Stainless Steel, Low-alloy Steel








MIG 400

Product Features

  • High efficiency and energy savings; its power usage efficiency is up to 80 — 85%, its power factor is up to 0.93; and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder.
  • Continuous adjustment function of the welding current voltage with a sufficient wide adjustment range.
  • Digital display, current & voltage preset function.
  • Superior performance.
  • Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding.
  • With advanced Single IGBT technology.
